Design Rf Component With Ads
Published 3/2025
MP4 | Video: h264, 1920x1080 | Audio: AAC, 44.1 KHz
Language: English | Size: 525.59 MB | Duration: 1h 0m
Complete Lecture Series
What you'll learn
Designing on ADS Tool
Designing Wilkinson Power Divider from Scratch
Designing of Patch Antennas
Schematic and Layout
Requirements
No Pre-requisite
Description

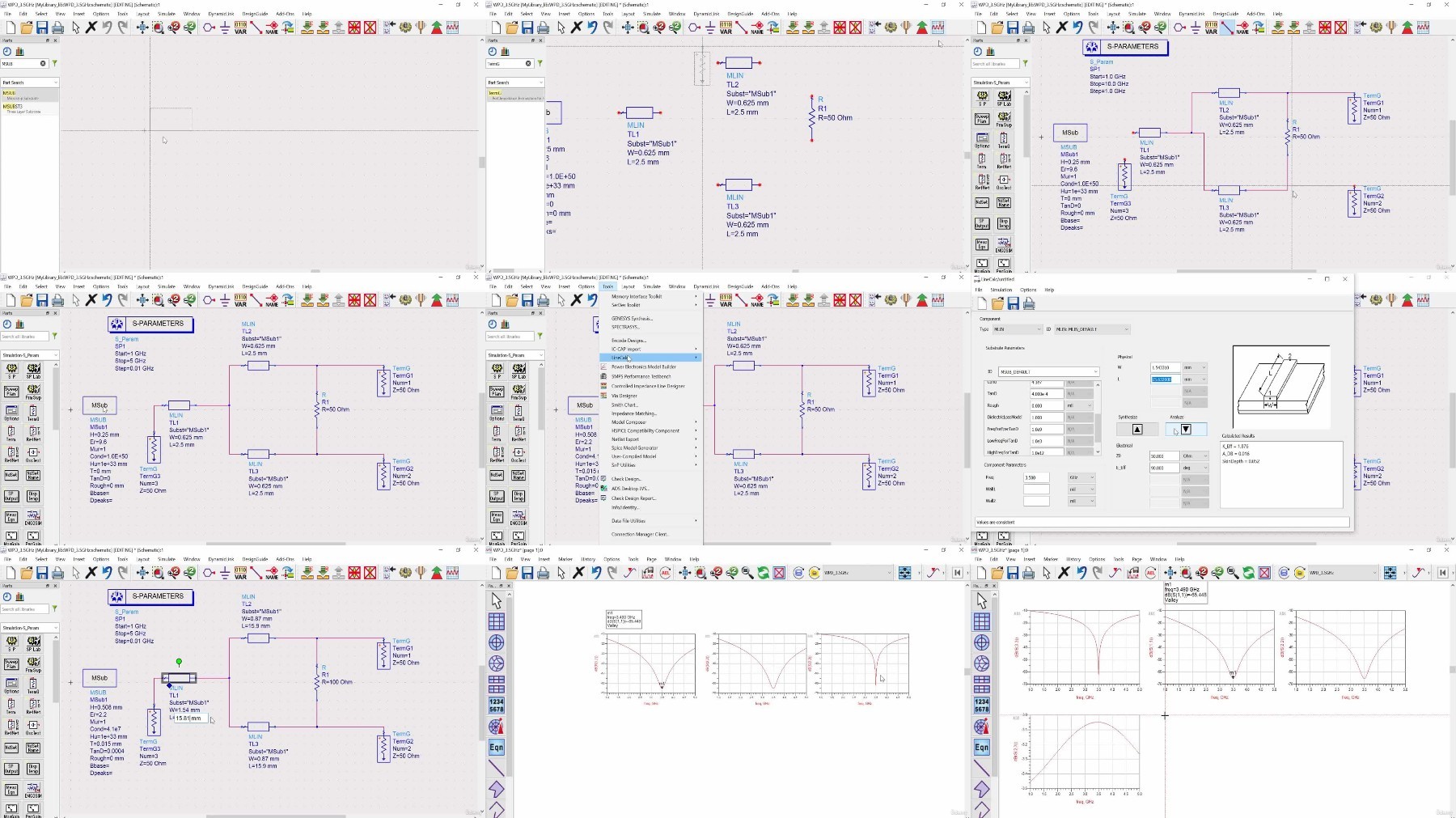

In this course, learners will go through the design of the RF component using ADS. We have focused mainly on antennas and power dividers. This course covers the basic aspects of designing and hence will give the viewers a step-by-step guide to designing and analysing the circuit. No pre-requisite needed. For any student/learner who wishes to explore the designing of RF components using ADS, this course is perfect in terms of designing and practical exposure to tools. We have used Keysight ADS since it's an important tool in the field of RF and has broad capabilities to make sure that your design stands out in the practical aspects. 1. Starting with the Schematic and Layout Interface of ADS2. Designing of Patch Antenna for 3.5 GHz 3. Designing of Antenna for 5.8 GHz4. Circuit Simulation of Wilkinson Power Divider (Layout video upcoming) For those who are unaware of Wilkinson Power Divider, its nothing but a power divider consisting of isolation resistor which is generally of twice the characteristic impedance. We haven't created long duration lecture series to avoid any unnecessary time consumption. We do respect your time and effort. So learn in least time with efficient skills. Will soon come up with addons Don't forget to check our other course as well.All the best!!
Overview
Section 1: Introduction
Lecture 1 Getting Familiar with ADS
Lecture 2 Layout Window
Lecture 3 5.8 GHz ISM Band Antenna Design from Scratch (Part-1)
Lecture 4 5.8 GHz ISM Band Antenna Design (Part-2)
Lecture 5 Patch Antenna @ 3.5GHz (Part-1)
Lecture 6 Patch Antenna @ 3.5 GHz (Part-2)
Lecture 7 Wilkinson Power Divider (Circuit Simulation)
Beginner Level, Under-grad student, candidate willing to learn RF Designing, Working on Power Divider
